  • 자동제어 모터 측정시스템 Electric Motor Test Stand System

    모듈형 구성으로, 사용자 요구사양에 따라 주문제작되는 다이내믹 측정시스템으로 모터/발전기/감속기 등의 연구,
    개발용도부터
    내구성 시험, 인증시험(*IEC60034-2-1/IEEE112/KSC IEC61972...)에 이르기까지 시험 항목별
    수동 시험 운전이나 자동 제어 운전/시험을 할 수 있습니다.


    • Torque & Speed
    • Current/Voltage
    • Electric Power/Mechanic Power
    • Temperature
    • Winding resistance
    • Efficiency ...

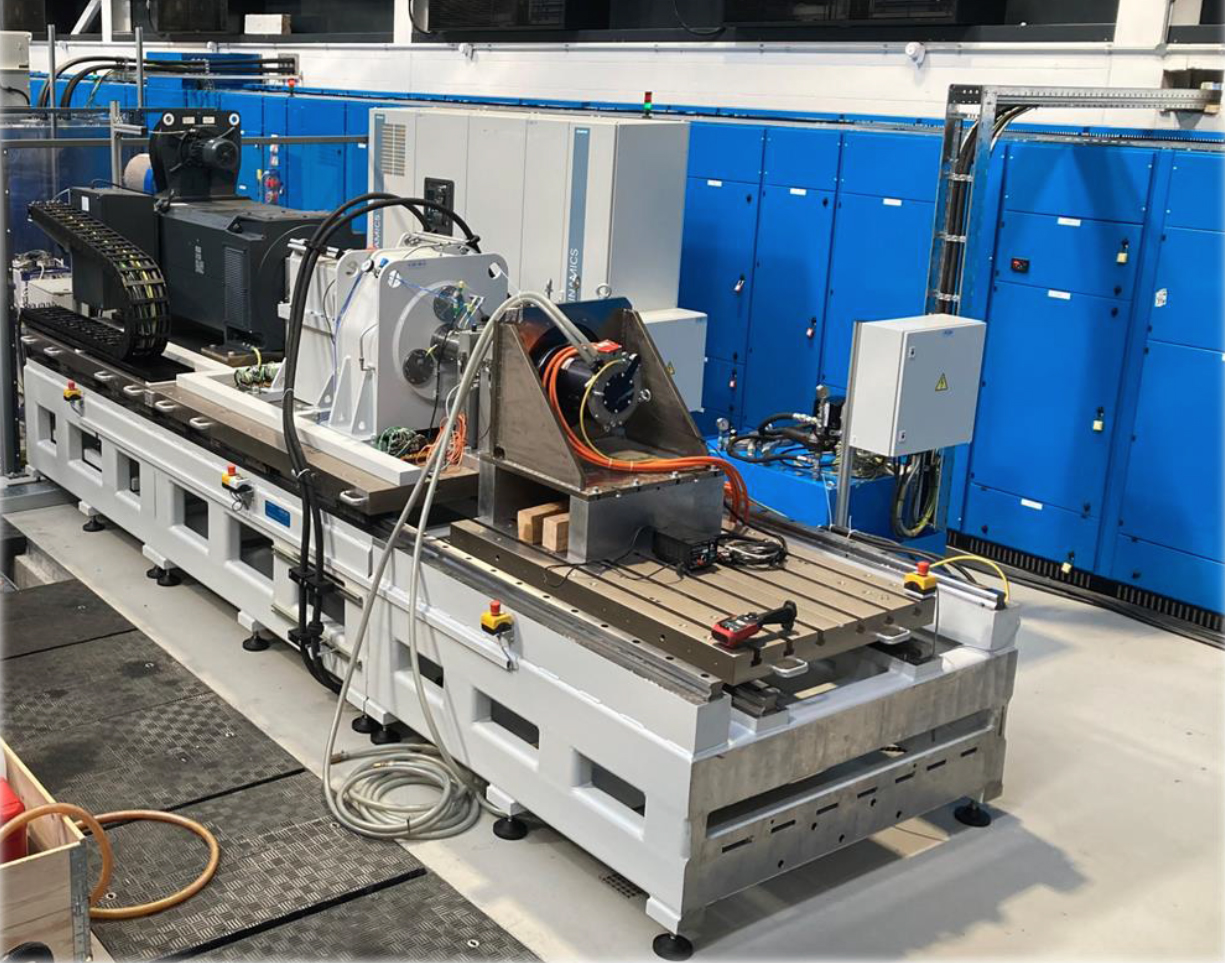

EV-motor test stand system with climatic chamber

Application sheets


Specification 측정시스템 사양


  1. 피시험 모터/발전기/기어 specimen motor/generator/gear


  1Ph + C 단상 캐패시터 모터   3Ph
  1Ph   3Ph + Controller
  Stepper motor   Synchronous motor
  Geared motor 감속기 모터   DC motor
  Shaded-pile motor 이동자계형 모터   BLDC motor
  DC-ECU-DC motor   DC-ECU-3AC
  AC-ECU-AC-motor   3AC-ECU-3AC
  etc.

  2. 피시험 모터 공급전원 specimen power supply


Type AC/DC

1/3-phases

Imax(A)

Umax(V)

Pmax(kW)

Frequency

Interface

Others

  *DC with regenerative feedback

  3. 피시험 모터/ECU 인버터 사양 specimen specification

  피시험 모터 사양

보기

피시험 모터 1

피시험 모터 2

피시험 모터 3

  타입 Type

1Ph


  배선 Wiring

3


  정격전압 V

220


  주파수 Hz

60


  최소 전류 Amin

0.1


  최대 전류 Amax

15


  위상 Phases

1







  토오크/회전속도 M/n limits:

보기




M(n)

n

M(n)

n

M(n)

n

M(n)

n

   I.

8

0

   II.

9

1500

   III.

4

3500

   IV.

1

6000


  4. 권선 저항 winding resistance


S1 warmup

  위상 Number of phases:
  측정 범위 Measuring ranges:

(    )  1.0  Ω

(    )  10.0 Ω

(    )  0.1  Ω

______  Ω


   ■    기동전 cold 권선 저항 측정(*주위 온도 ambient temperature)

   ■    온도 포화(temperature saturation)  warm 권선 저항 측정

   ■    온도 포화(temperature saturation) 후 주위 온도(ambient temperature) 측정

   ■    온도 하강 곡선의 외삽 extrapolation(*저항 산출법)




  5. 표면 온도 측정(direct with sensors)


   ■     sensor type(thermocouple type K/J/T... pt100)

   ■     number of channels



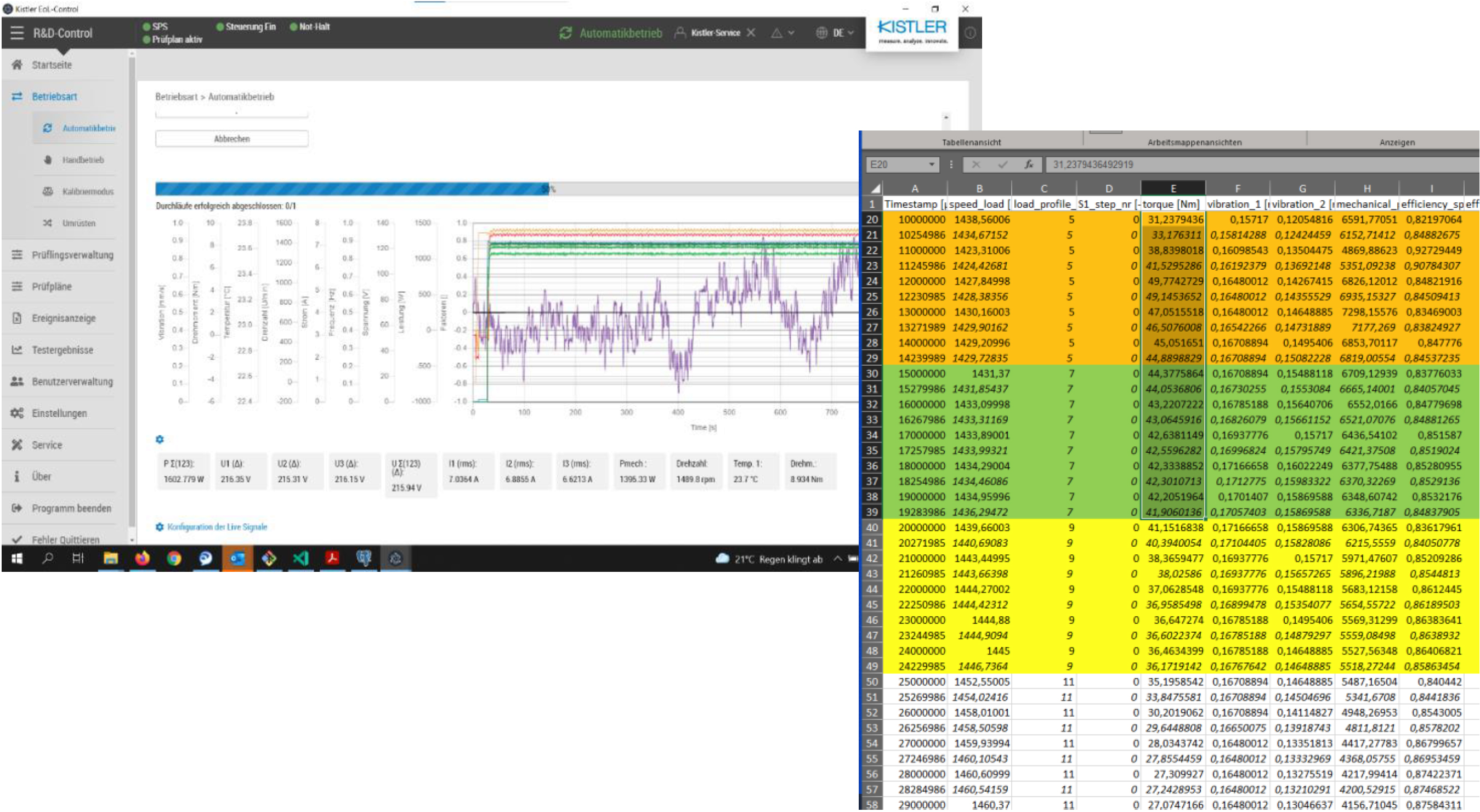

  6. 시험 모듈 프로그램(Test module software)

Dynamic characteristic curves



   ■     기본 모듈(*standard scope of delivery):






   ■     추가 시험 모듈(additional test module)



Torque ripple


  • Torque ripple(*energized) / Cogging torque(*not energized) / Angles
  • Load cycles,...



  7. 온/습도 챔버(Climatic chamber)

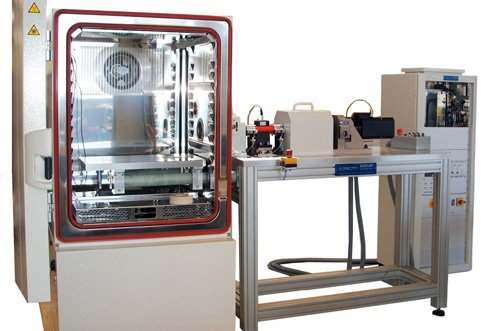

Test stand with temperature chamber


  Chamber size / capacity(W x H x D / litres):
  Temperature range:

  Min. =      oC

  Max. =      oC

  Humidity range:   10% rel. H.(*RH)          % rel. H.(*RH)
  Cooling gradient:

  [ oC  / min]

  Heating gradient:

  [ oC  / min]







  8. 다양한 측정시스템(Test stand systems for different applications)

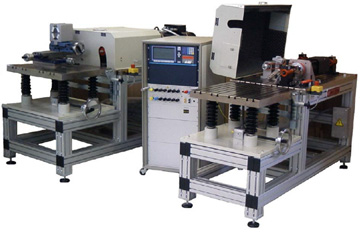

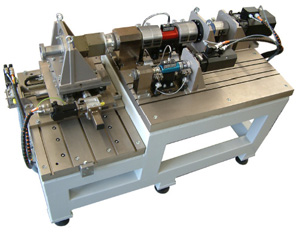

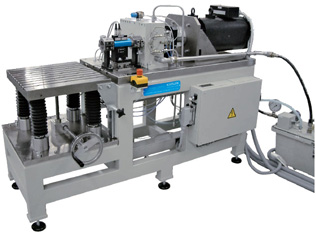

BLDC/actuator for Robot Combo test system High-speed test system Elec. tool test system
BLDC/actuator for Robot Combo test system with 2 beds High speed motor test Portable elec. tools
    • torque/speed
    • temperature
    • axial / radial force
    • rotation angle
    • 1Ph, 3Ph, 3Ph+ECU, DC, BLDC
    • MEPS: motor efficiency
    • max. torque: 80Nm / 10Nm
    • max. speed:  25,000rpm
    • 1Ph, 3Ph, 3Ph+ECU, DC, BLDC
    • max. torque: 70Nm / 23kW
    • max. speed: 50,000rpm
    • gearbox including oil power uni
    • Grinder, Drilling machine,
      Branch cutter
    • Different specimen in size / shape
    • 22,000rpm with belt-driven gear
    • ntegrated lifting table
      with X-Y table

X-Y force table

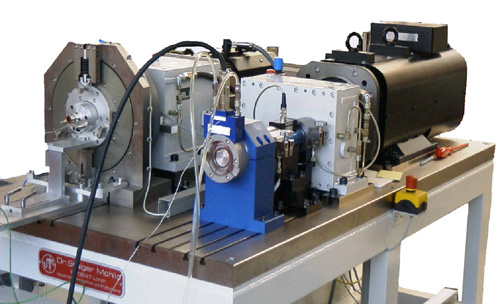

High speed combo test system

120,000rpm spindle motor

Electric drilling machine

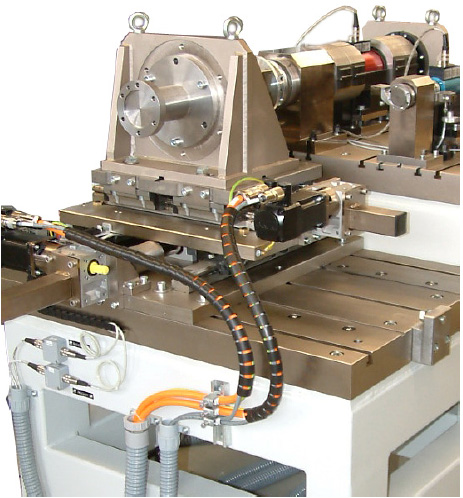

    • Simulating the force both axially and radially(X/Y)
    • Axial force: 1,000N
    • Axial force stroke: 150mm
    • Radial force: 5,000N
    • Radial force stroke: ±25mm
    • 3.1kW 10,000rpm / 25kW 50,000rpm
    • gear ratio: i=1:6.307(*7,200rpm=>50,000rpm)
    • high speed dual-range torque sensor
    • Reaction torque measurement
    • max. torque: 25Nm / 2Nm
    • max. speed: 50,000rpm / 120,000rpm
    • gear ratio:  i=1:6 / 1:20

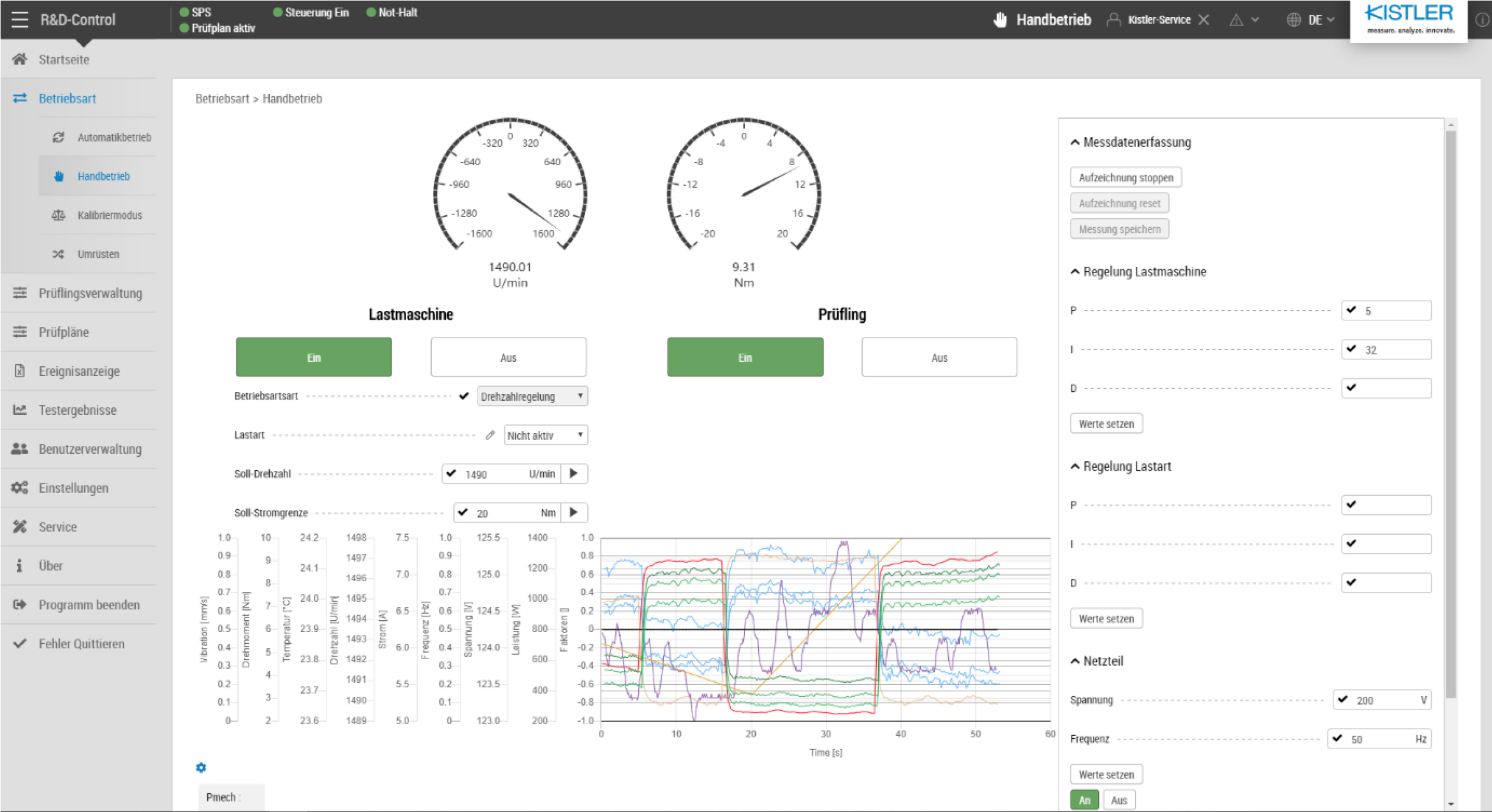

    • Manual characteristic

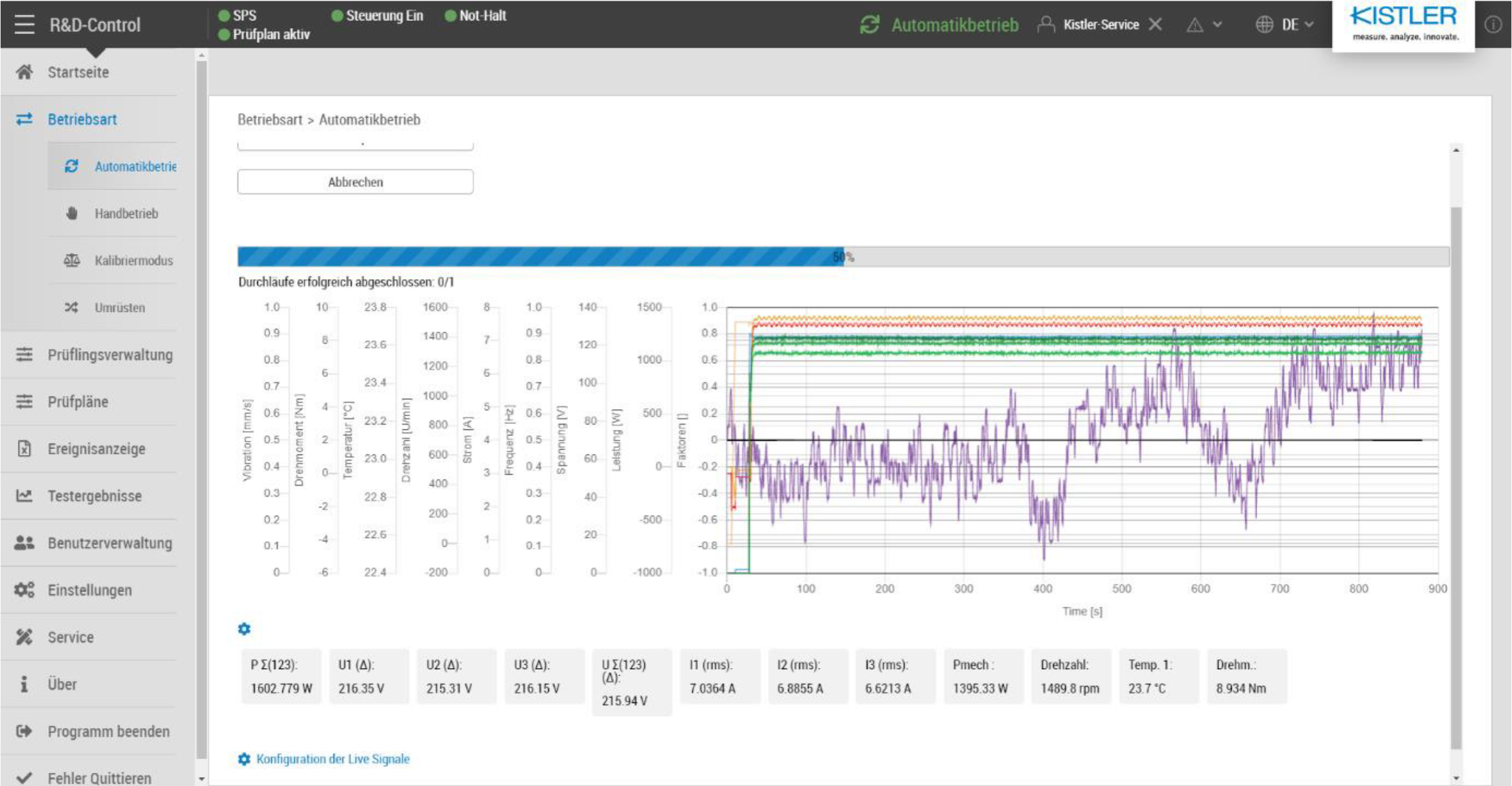

    • Automatic characteristic
    • Steady-state operation
    • Heat rise test
    • Locked rotor torque test

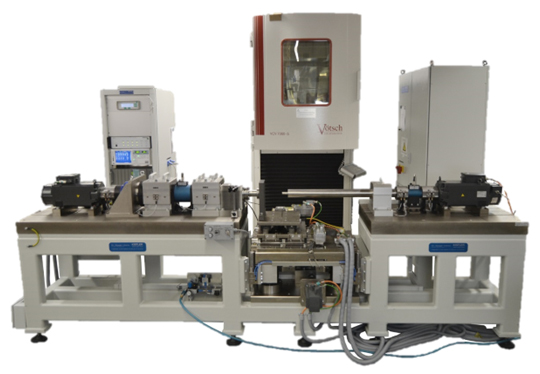

MEPS test stand system -size 1
